PCa - PROBE-CARRIER

N° Code Brand Description Foto

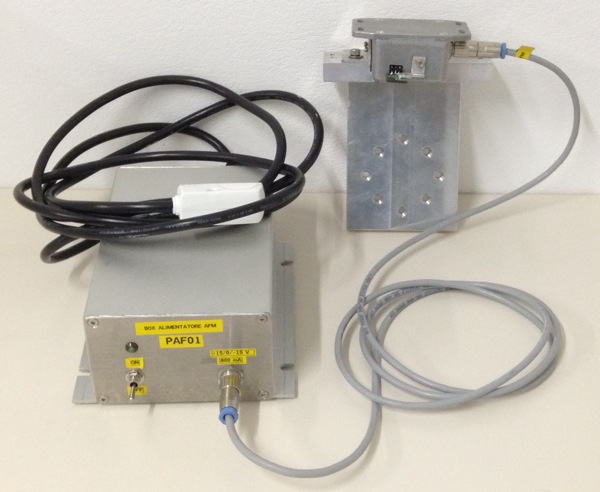

  PCa Lintes Probe Carrier

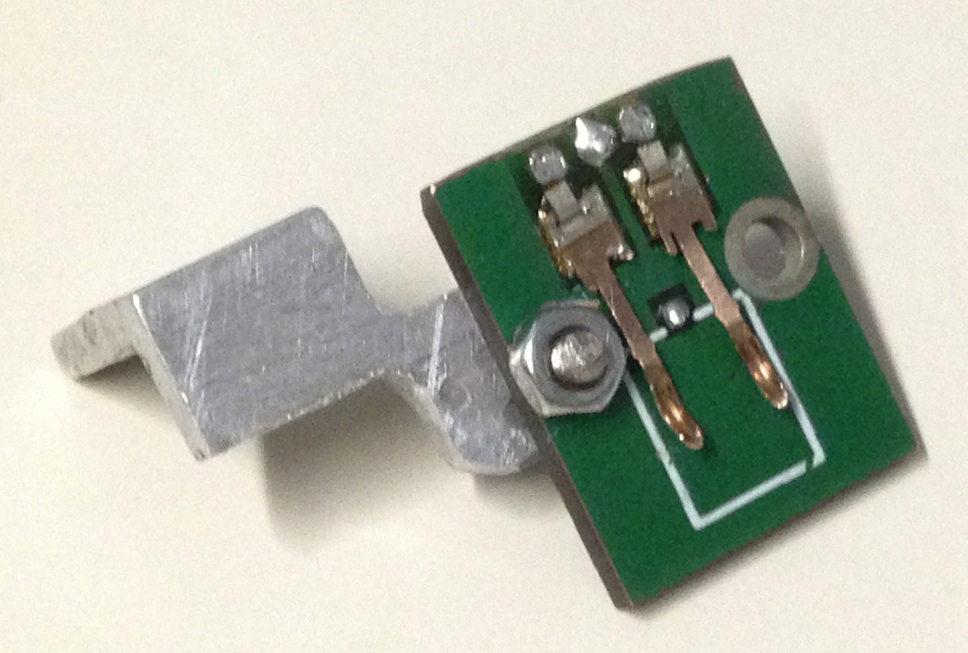

11 CAP Lintes Connector for Akiyama Probe

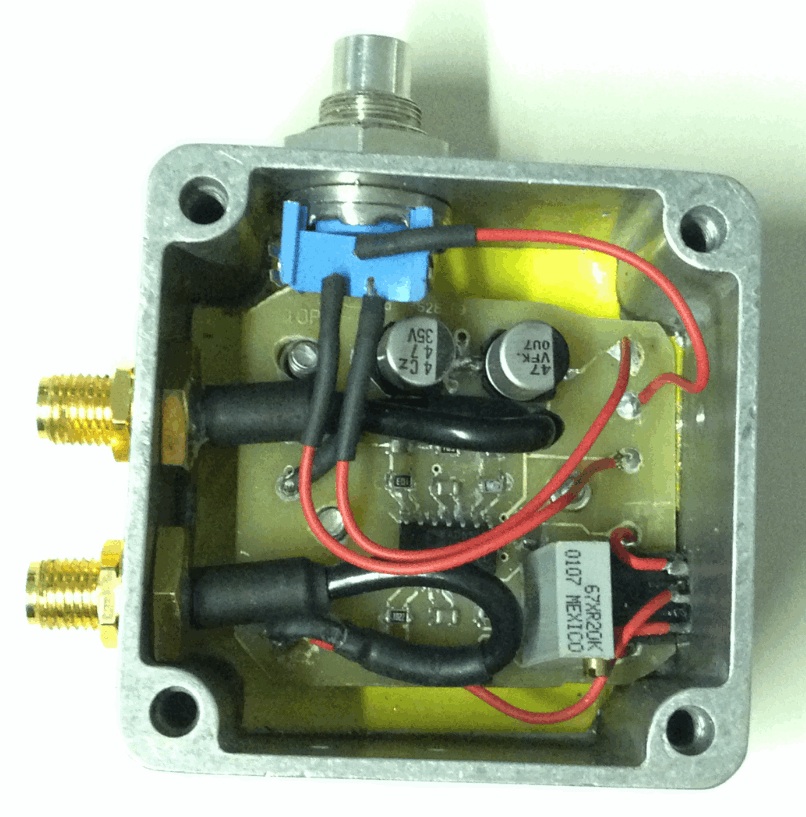

12 BSA Lintes Box for electronic Signal Amplification (connections IN-OUT)

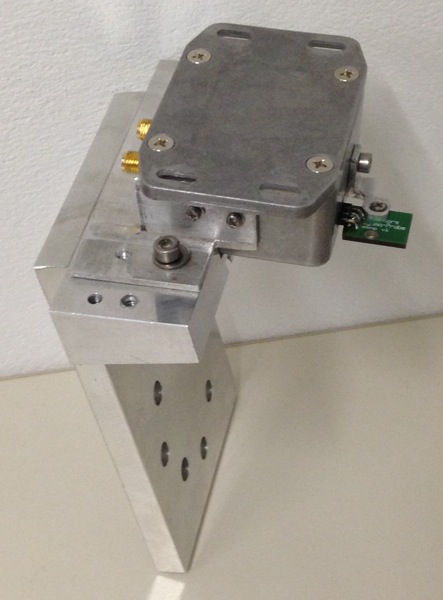

13 SCB Lintes Support for
CAP and BSA

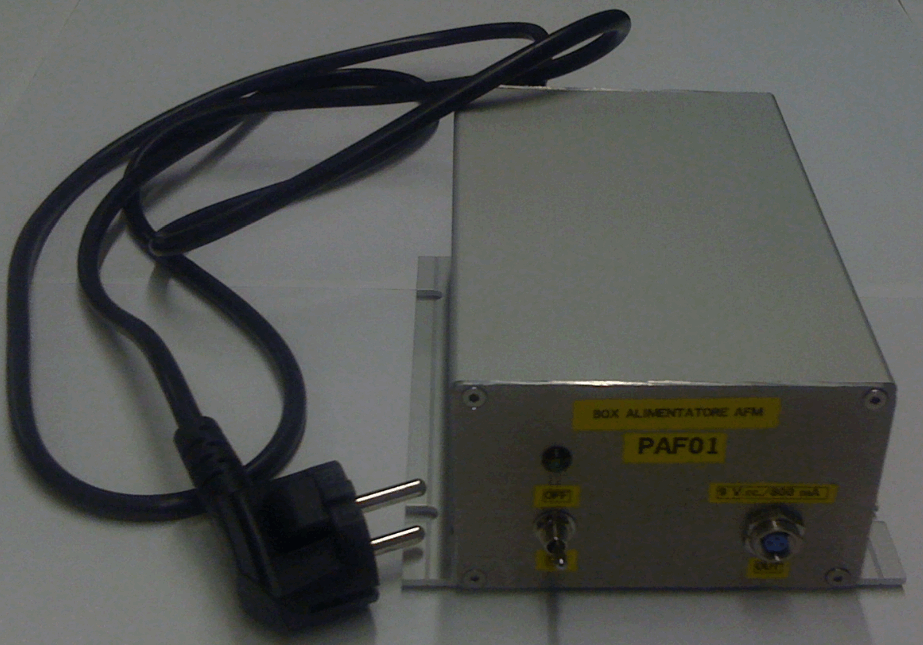

14 PAF Lintes Power Supply AFM
(including power cable)

21 BSA1 Lintes Cable 1
 BSA Power <-- PAF Power Supply
22 BSA2 Lintes Cable 2 BSA Input <-- Function Generator Output
23 BSA3 Lintes Cable 3 BSA Output --> CBS Input / Oscilloscope
